- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: YGG,YGGR,YGGPR,YGGPRx,YGVF,YGVFR,YGVFPR,YGVFPRx,YGVF22,YGG22,YGGB32,YGVFPB,YGGRxB
- Weight: 2300.000 kg

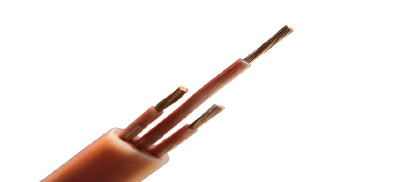

Silicon Rubber Power Cable (Q/0100HL20)
Application
The standard specifies material, technical requirement, reception rules, packaging and storage of silicon rubber insulated electrical cable with rated voltage of 0.6kV/1kV.
The standard is applicable to silicon rubber insulated power cable with operating temperature of 180℃ and rated voltage of 0.6kV/1kV.
Model and Name of Product
Table 2
Model | Name |
YGG | Copper , silicon rubber insulated and sheathed, Mobile power cable |
YGGR | Copper flexible conductor , Silicon rubber insulated and sheathed, Mobile power cable |
YGGPR | Copper flexible conductor , Silicon rubber insulated and sheathed, braided armored , Mobile power cable |
YGGPRx | Tinplated Copper flexible conductor ,Silicon rubber insulated and sheathed,braided armored, Mobile power cable |
YGVF | Copper, Silicon rubber insulated ,Butyronitrile Rubber sheathed, Mobile power cable |
YGVFR | Copper flexible conductor , Silicon rubber insulated ,Butyronitrile Rubber sheathed, Mobile power cable |
YGVFPR | Copper flexible conductor ,Silicon rubber insulated,Butyronitrile Rubber sheathed,braided armored, Mobile power cable |
YGVFPRx | Tinplated Copper flexible conductor ,Silicon rubber insulated,Butyronitrile Rubber sheathed,braided armored, Mobile power cable |
YGVF22 | Copper,Silicon rubber insulated,Butyronitrile Rubber sheathed, Mobile power cable |
YGG22 | Copper, Silicon rubber insulated and sheathed , Steel strip armored , Mobile power cable |
YGGB32 | Copper, Silicon rubber insulated and sheathed ,Thin steel wire armored , Flat Mobile power cable |
YGVFPB | Copper, Silicon rubber insulated and sheathed ,Thin copper braided armored ,Flat Mobile power cable |
YGGRxB | Tinplated Copper flexible conductor， Silicon rubber insulated and sheathed,Flat Mobile power cable |
- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: YGG,YGGR,YGGPR,YGGPRx,YGVF,YGVFR,YGVFPR,YGVFPRx,YGVF22,YGG22,YGGB32,YGVFPB,YGGRxB
- Weight: 2300.000 kg
Specifications shall meet provisions in Table 2
Table 2
Number of Core | 1 | 2 | 3 | 3 1 | 4 | 5 | 4 1 | 3 2 |
No-armored section | 1.5～300 | 1.5～300 | 1.5～300 | 2.5～300 | 1.5～300 | 1.5～300 | 2.5～300 | 2.5～300 |
A rmored section | 10～300 | 4～300 | 4～300 | 4～300 | 4～300 | 4～300 | 4 ～ 300 | 4～300 |
Note:
1. Cables with 4 cores and 5cores are four-core cable and five-core cable. For four-core cable,three cores are main cores,and the test on core is neutral core. For five-core cable, three cores are main cores,one core is neutral core, and the rest on core is protection core.
2. Cables with “ 3 1 ” cores is four-core(three-big one-small)cable,for which the three cores with larger section are main cores,while the core with smaller section is protection core.
3. Cables with “ 4 1 ” cores is five-core(four-big one-small)cable,for which the four cores with larger section are main cores,while the core with smaller section is protection core.
4. Cables with “ 3 2 ” cores is five-core(three-big two-small)cable,for which the three cores with larger section are main cores,while the cores with smaller section is neutral core and protection core.
5. The sections of neutral core and protection core of 3 1 cores,4 1 cores and 3 2 cores shall meet provisions in Table 3
Table 3
3 1 | 4 1 | 3 2 | |||||
Main core | P r otection core | Main core and neutral core | Protection core | Main core | Neutral core and Protection core | ||
2.5 | 1.5 | 2.5 | 1.5 | 2.5 | 1.5 | ||
4 | 2.5 | 4 | 2.5 | 4 | 2.5 | ||
6 | 4 | 6 | 4 | 6 | 4 | ||
10 | 6 | 10 | 6 | 10 | 6 | ||
16 | 10 | 16 | 10 | 16 | 10 | ||
25 | 16 | 25 | 16 | 25 | 16 | ||
35 | 16 | 35 | 16 | 35 | 16 | ||
50 | 25 | 50 | 25 or 35 | 50 | 25 or 35 | ||
70 | 35 | 70 | 25 or 35 | 70 | 25 or 35 | ||
95 | 50 | 95 | 35 or 50 | 95 | 35 or 50 | ||
120 | 70 | 120 | 50 or 70 | 120 | 50 or 70 | ||
150 | 70 | 150 | 70 or 95 | 150 | 70 成 95 | ||
185 | 95 | 185 | 95 or 120 | 185 | 95 or 120 | ||
240 | 120 | 240 | 120 or 150 | 240 | 120 or 150 | ||
300 | 150 | 300 | 150 or 185 | 300 | 150 or 185 | ||
Note ： neutral conductor and protective conductor could be choice by u ser ’s requirement | |||||||
Note: Weight of different models is different,more details are available on catalogue.
