- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: KGG,KGGR,KGGP,KGGRP,KGGRP1
- Weight: 2300.000 kg

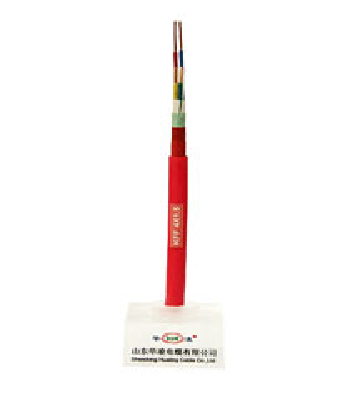

Silicon R ubber I nsulated Heat-proof Control Cable
( Q / 0100HLT013 )
Applications
The product is applicable to wiring or signal transmission of electrical instruments for mobile or fixed laying with rated AC voltage of 450/750V and below. With good thermal stability, the cable can maintain good electrical performance and flexibility in high temperature, high coldness and corrosive environment, suitable for situations with special requirements on movement, temperature resistance and corrosion in metallurgy, electrical power and petrochemical engineering.
Operation Characteristics
1. Rated AC voltage U/U:450/750V
2. Maximum operation temperature of cable conductor:180℃ ;
3. Minimum ambient temperature:
silicon rubber sheath: fixed laying -60℃ ,non-fixed laying -15 ℃
4. The temperature of cable installation and laying shall not be below -25℃
5. Allowable bending radius of cable: cables without armor shall not be less than 6 times external diameter
of cable.
Model and Name of Product
Model | Name |
KGG | Silicon rubber insulated and sheathed Control C able |
KGGR | Silicon rubber insulated and sheathed Flat Control Cable |
KGGP | Silicon rubber insulated and sheathed,Copper wire braid ed shielded Control cable |
KGGRP | Silicon rubber insulated and sheathed,Copper wire braid ed shielded Flat Control Cable |
KGGRP1 | Silicon rubber insulated and sheathed ,Tinplated c opper wire braid shielded Control cable |
Note ：1 . If antiflaming silicon rubber cable is required, “ ZR ” shall be added before model; 2 . As required by user, silicon rubber insulated butyronitrile rubber jacketed control cable; 3 . The cooper wire in conductor core can apply tinplated copper wire | |
- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: KGG,KGGR,KGGP,KGGRP,KGGRP1
- Weight: 2300.000 kg
Specifications
Model | Number of Cores | Rated Voltage 450/750V |
N ominal S ection ( mm 2 ） | ||
KGG , KGGR , KGGP , KGGRP , KGGRP1 | 2～61 | 0.75～10 |
Physical Date
Core × N ominal S ection （mm 2 ） | Conductor Construction Number × Diameter (mm) | Maximum External Diameter | Reference Diameter | ||
KGGR | KGGRP | KGGR | KGGRP | ||
2×0.75 | 24×0.20 | 9.2 | 10.0 | 78 | 118 |
2×1.0 | 32×0.20 | 9.5 | 10.6 | 87 | 127 |
2×1.5 | 48×0.20 | 10.2 | 11.5 | 114 | 164 |
2×2.5 | 51×0.25 | 10.5 | 12.5 | 156 | 210 |
3×0.75 | 24×0.20 | 10.5 | 11.5 | 93 | 133 |
3×1.0 | 32×0.20 | 11.5 | 12.9 | 100 | 152 |
3×1.5 | 48×0.20 | 12.0 | 13.8 | 126 | 177 |
3×2.5 | 51×0.25 | 12.5 | 14.8 | 180 | 243 |
4×0.75 | 24×0.20 | 11.0 | 12.5 | 110 | 160 |
4×1.0 | 32×0.20 | 11.5 | 13.0 | 120 | 173 |
4×1.5 | 48×0.20 | 12.0 | 13.5 | 151 | 205 |
4×2.5 | 51×0.25 | 14.5 | 15.5 | 220 | 270 |
5×0.75 | 24×0.20 | 12.0 | 13.0 | 118 | 168 |
5×1.0 | 32×0.20 | 12.5 | 13.5 | 140 | 200 |
5×1.5 | 48×0.20 | 13.0 | 14.2 | 190 | 250 |
5×2.5 | 51×0.25 | 14.0 | 15.2 | 290 | 380 |
Note: Weight of different models is different,more details are available on catalogue.
