- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: NH-VV,NH-VV22,NH-YJV,NH-YJV22, NH-F,WDZN-YY,WDZN-YY23,NH-YGG
- Weight: 2300.000 kg

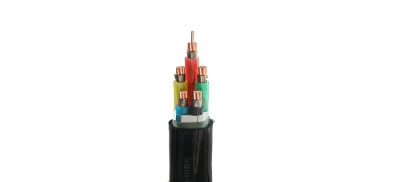

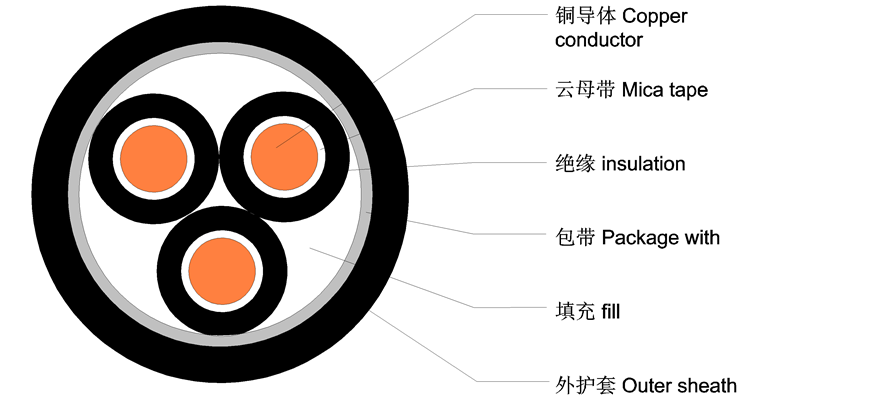

Refractory power cable ( GB/T12706.1,GB/T19666, Q / 0100HLT008)
Application
1. The standard specifies the model,specification,technical requirement,testing method,inspection rules,
mark, packaging, transportation and storage of copper refractory electrical cable with rated voltage of 0.6kV/1kV and below.
2.The Refractory power cable specified in the standard is used for situations that power cable shall keep operation for certain period of time in case of inflaming
Model and Name of Product
Model | Name |
NH-VV | Copper,PVC insulated, PVC sheathed,Refractory cable |
NH-VV22 | Copper,PVC insulated, PVC sheathed,Steel tape armored,Refractory cable |
NH-YJV | Copper,XLPE insulated, PVC sheathed,Refractory cable |
NH-YJV22 | Copper,XLPE insulated, PVC sheathed,Steel tape armored,Refractory cable |
NH-FF | Fluoroplastic insulated and sheathed,Refractory cable power cable |
WDZN-YY | LSZH polyolefine insulated and sheathed,Refractory cable power cable |
WDZN-YY23 | LSZH polyolefine insulated and sheathed,Steel tape armored,Refractory cable power cable |
NH-YGG | Silicon rubber insulated and sheathed,Refractory cable power cable |
- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: NH-VV,NH-VV22,NH-YJV,NH-YJV22, NH-F,WDZN-YY,WDZN-YY23,NH-YGG
- Weight: 2300.000 kg
Specifications shall meet provisions in Table 2
Table 2
Model | Number of cores | Rated voltage 0.6kV/1kV |
Nominal Sections mm 2 | ||
NH-VV , NH-VV22 , NH-YJV , NH-YJV22 , NH-F , WDZN-YY , WDZN-YY23 , NH-YGG | 1 ~5 | 1.5 ~300 4~ 300 |
Note: Weight of different models is different,more details are available on catalogue.
