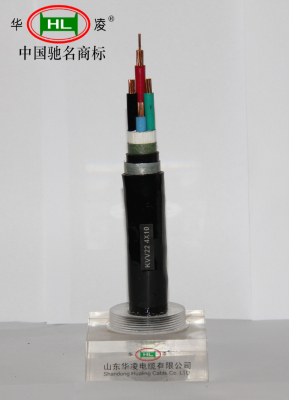

Polyethylene insulated Control Cable ( GB/T 1 9330. 2 )
Applications:
The product is mainly applicable to control,signal,protection and measurement lines with DC and AC(50-60)Hz rated voltage of 0.6/1kV.
Operation Characteristics:
1. The allowable long-term operation temperature for cable conductor is 70℃ , and the cable laying temperature shall not be below -15 ℃ .
2. Allowable bend radius of cable shall not be less than 10 times external diameter of finished cable.
3. Polyethylene insulated control cable has good cold resistant performance.

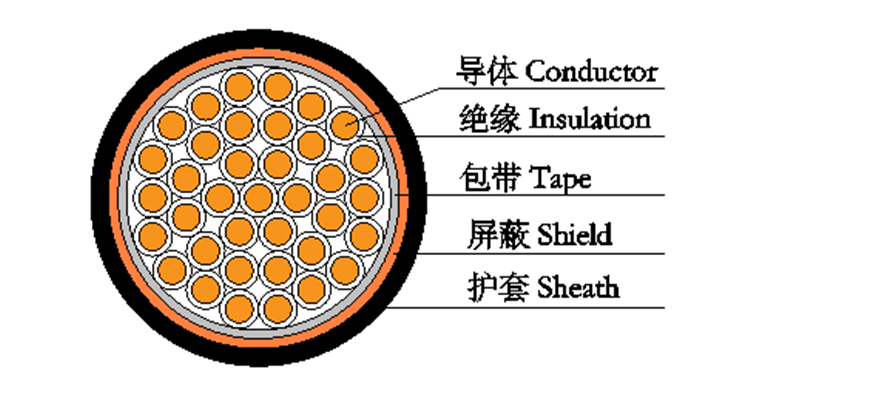

Model and Name of Product
Model | Name |
KYY | Copper,Polyethylene insulated and sheath,Control Cable |
KYYP | Copper,Polyethylene insulated and sheath,Copper braided shield Control Cable |
KYYP2 | Copper,Polyethylene insulated and sheath,Copper strip shield Control Cable |
KY23 | Copper,Polyethylene insulated and sheath,Steel strip armored Control Cable |
KYV | Copper,Polyethylene insulated ,PVC sheath Control Cable |
KYVP | Copper,Polyethylene insulated ,PVC sheath , Copper braided shield Control Cable |
KYVP2 | Copper,Polyethylene insulated ,PVC sheath ,Copper strip w rapped shield Control Cable |
KYV22 | Copper,Polyethylene insulated ,PVC sheath , Steel strip armored Control Cable |
Specifications
Model | Conductor Type | Rated Voltage （V ） | N ominal S ection ( mm 2 ） | ||||
0.5～ 1 | 1.5 | 2.5 | 4 | 6～ 10 | |||
Number of Conductor | |||||||
KYY , KYYP , KYYP2 , KYV , KYVP , KYVP2 , KYV22 | A , B | 450/750 | 2～ 61 | 4～ 14 | 4～ 10 | ||
KY22 , KY23 , KV23 , KYY30 , KYVP2-22 , KYP32 | A , B | 450/750 or 600/1000 | 2～ 61 | 4～ 14 6～ 14 | 4～ 10 6～ 10 | ||
Note ： number of cores are 2 , 4 , 5 , 6 , 7 , 8 , 10 , 12 , 14 , 16 , 19 , 24 , 30 , 37 , 44 , 48 , 52 and 61 | |||||||
l Insulation Thickness
N ominal S ection ( mm 2 ） | Insulation Thickness |
Polyethylene | |
0.5 | 0.6 |
0.75 | 0.6 |
1.5 | 0.6 |
2.5 | 0.7 |
4 | 0.7 |
6 | 0.7 |
10 | 0.7 |
l Copper strip sh ield should overlap wrapped , overlapping ratio should n ot b elow o r e qual 15% of bandwidth
l soft copper wire or with which t otal cross section n ot b elow or e qual 0.01mm 2 should be placed inner the Shield longitudinally
l Copper strip Thickness 为0.08 ～ 0.15mm .
Note: Weight of different models is different,more details are available on catalogue.
