- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: VV,VLV,VV22,VLV22,VV32,VLV32,VV42,VLV42
- Weight: 2300.000 kg
PVC insulated Power Cable with Rated Voltage of 0.6/1kV and Below （GB/T 12706.1 ）
Applications:
The product is applicance for power transmission and ditribution line of electric power system with rated voltage of 0.6kV /1kV and below
Model and Name of Product
Model | Name | Executive Standard | |
Copper core | Aluminum core | ||
VV | VLV | Copper(Aluminum),PVC insulated , PVC sheathed power cable | GB/T 12706.1 |

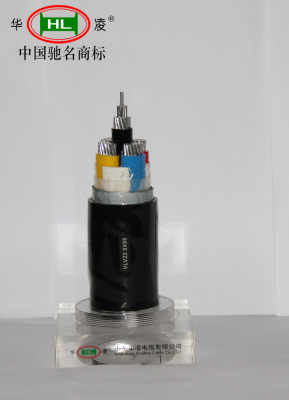

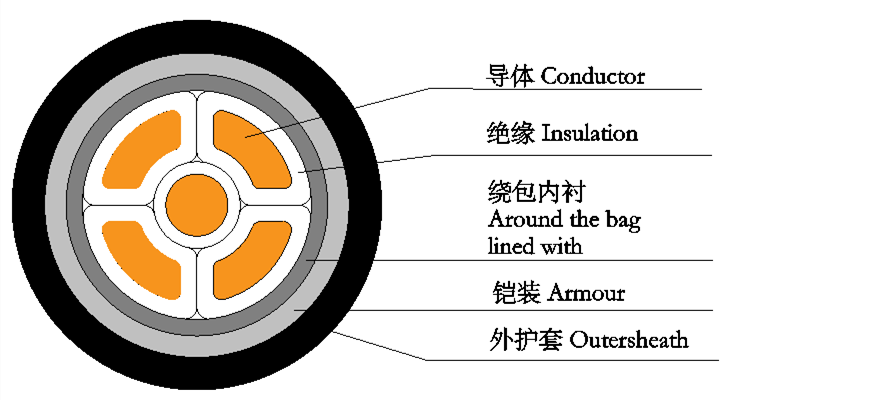

VV22 | VLV22 | Copper(Aluminum),PVC insulated , Steel tape armor ed， PVC sheathed power cable | |
VV32 | VLV32 | Copper(Aluminum),PVC insulated,Thin steel wire armored, PVC sheathed power cable | |
VV42 | VLV42 | Copper(Aluminum),PVC insulated ,Thick steel wire armored, PVC sheathed power cable | |
Note: The product also includes antiflaming type and refractory type(excluding aluminum core),and their performances meet the requirements on antiflaming and refractory tests provided separately in GB/T 18380 and GB/T 19216 . | |||
Specification
Model | Rated Voltage kV | Number of Cores | Nominal Sections mm 2 | |
Copper core | Aluminum core | 0.6/1 | ||
VV、 VV 22 、VV 32 、VV 42 | VLV 、 VLV22 、 VLV32 、 VLV42 | 1 | 1.5～ 1000 2.5～ 300 10～ 300 | |
VV、 VV 22 、VV 32 、VV 42 | VLV 、 VLV22 、 VLV32 、 VLV42 | 2 | 1.5～ 185 2.5～ 185 4～ 185 | |
VV、 VV 22 、VV 32 、VV 42 | VLV 、 VLV22 、 VLV32 、 VLV42 | 3 | 1.5～ 300 2.5～ 300 4～ 300 | |
VV、 VV 22 、VV 32 、VV 42 | VLV 、 VLV22 、 VLV32 、 VLV42 | 4、 3+1 、 5 、 4+1 、 3+2 | 4～ 300 4～ 300 | |
Note: Weight of different models is different,more details are available on catalogue.
