PVC insulated Control Cable ( GB/T 9330.2 )
Applications
The product is applicable to PVC insulated and sheath control cable used for control and monitoring loops and protection circuit and wiring of electrical instrument in power distribution units with rated AC voltage of 450/750V and below.
Operation Characteristics
1.The allowable longterm operation temperature for cable conductor is 70℃ , and the cable laying temperature shall not be below 0 ℃
2. bend radius :
Cable without armor layer shall not be less than 6 times external diameter of cable;
Cable with armor or copper strip shielding structure shall not be less than 12 times external diameter of cable
Flexible cable with shielding layer structure shall not be less than 6 times external diameter of cable.
Model and Name of Product
Model | Name |
KVV | Copper,PVC insulated and sheath,Control cable |
KVVP | Copper,PVC insulated and sheath,Braid ed shield,Control cable |
KVVR | Copper,PVC insulated and sheath ,Flat control cable |
KVVP2 | Copper,PVC insulated and sheath,Copper strip shield,Control cable |

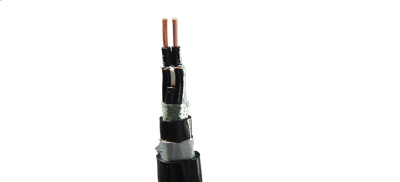

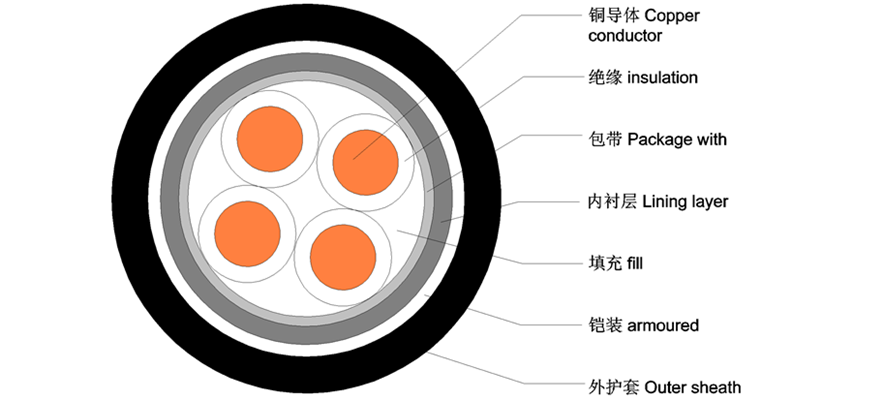

KVV22 | Copper,PVC insulated and sheath ,Copper strip armored ,Control cable |
KVV32 | Copper,PVC insulated and sheath ,Fine wire armored ,Control cable |
KVVRP | Copper,PVC insulated and sheath,Braid shield ,Flat control cable |
KVVP2-22 | Copper,PVC insulated and sheath ,steel strip shield and armored, Control cable |
KVVP22 | Copper,PVC insulated and sheath,Braided shield ,Steel strip armored , Control cable |
Note ：models above can also provide antiflaming control cable as required by customers,with “ZR ”added in front of the model. | |
- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: Model,ZR-VV(VLV),ZR-YJV(YJLV),ZR-YGG,ZR-YY(YLY),ZR-FF,ZR-VV22(VLV22),ZR-YJV22(YJLV22),ZR-YGG22,ZR-YY22(YLY22 ),ZR-FF22
- Weight: 2300.000 kg
Specifications
Model | Rated V oltage (V) | Nominal Section of Conductor( mm 2 ） | |||||||
0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
Number of Cores | |||||||||
KVV KVVP |
450/750
| — | 2～ 61 | 4～ 24 | 2～ 10 | ||||
KVVP2 | — | 4～ 61 | 4～ 14 | 4～ 10 | |||||
KVV22 | — | 7～ 61 | 4～ 61 | 4～ 14 | 4～ 10 | ||||
KVVP2-22 KVVP22 | — | 7～ 61 | 4～ 61 | 4～ 14 | 4～ 10 | ||||
KVVR | 2～ 61 | — | — | ||||||
KVVRP | 2～ 61 | 2～ 48 | — | — | |||||
Note ： Recommended numbers of cores are 2 , 3 , 4 , 5 , 7 , 8 , 10 , 12 , 14 , 16 , 19 , 24 , 27 , 30 , 37 , 44 , 48 , 52 and 61 cores. | |||||||||
Construction of conductor and DC resistance
Nominal Section ( mm 2 ） | Construction of conductor | 20℃ DC resistance （M Ω· km ） Not Below or Equal | |
Number of Conductor / Diameter （mm ） | No-tinned | Tinned | |
0.5 | 16/0.20 | 39.0 | 40.1 |
0.75 | 1/0.97 | 24.5 | 24.8 |
0.75 | 7/0.37 | 24.5 | 24.8 |
0.75 | 24/0.20 | 26.0 | 26.7 |
1.0 | 1/1.13 | 18.1 | 18.2 |
1.0 | 7/0.43 | 18.1 | 18.2 |
1.0 | 32/0.20 | 19.5 | 20.0 |
1.5 | 1/1.38 | 12.1 | 12.2 |
1.5 | 7/0.52 | 12.1 | 12.2 |
1.5 | 30/0.25 | 13.3 | 13.7 |
2.5 | 1/1.78 | 7.41 | 7.56 |
2.5 | 7/0.68 | 7.41 | 7.56 |
2.5 | 49/0.25 | 7.98 | 8.21 |
4 | 1/2.25 | 4.61 | 4.70 |
4 | 7/0.85 | 4,61 | 4.70 |
6 | 1/2.76 | 3.08 | 3.11 |
6 | 7/1.04 | 3.08 | 3.11 |
10 | 7/1.35 | 1.83 | 1.84 |
Thickness of insulation and insulation resistance
Nominal Section ( mm 2 ） | Insulation Nominal Thickness （mm ） | Insulation resistance （M Ω· km ） at 20℃ Not Below or Equal |
0.5 | 0.6 | 13 |
0.75 | 0.6 | 12 |
1.0 | 0.6 | 11 |
1.5 | 0.7 | 11 |
2.5 | 0.8 | 10 |
4 | 0.8 | 8.5 |
6 | 0.8 | 7 |
10 | 1.0 | 6.5 |
Nominal Thickness of Outer Sheath Nominal Thickness
No- Sheath Diameter (mm) | Nominal Thickness of Sheath （mm ） |
less than or equal to 10 | 1.2 |
10.01～ 16 | 1.5 |
16.01～ 25 | 1.7 |
25.01～ 30 | 2.0 |
30.01～ 40 | 2.2 |
Note: Weight of different models is different,more details are available on catalogue.
