- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: JKV-0.6/1,JKLV-0.6/1,JKY-0.6/1,JKLY-0.6/1,JKYJ-0.6/1,JKLYJ-0.6/1
- Weight: 2300.000 kg

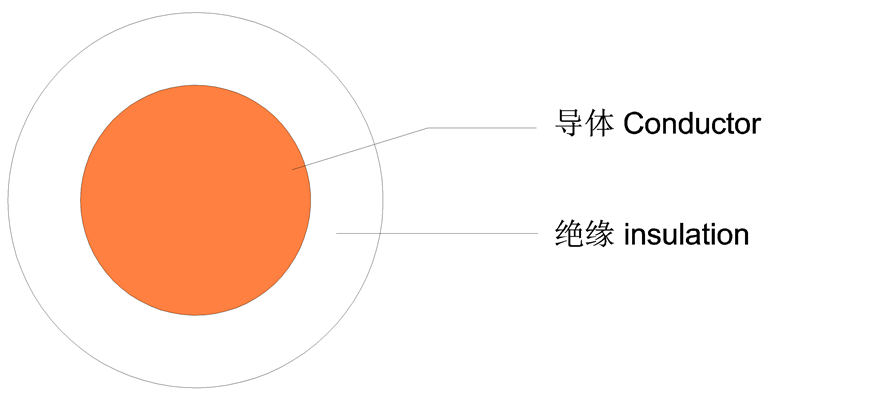

Overhead Insulated Cable With The Rated Voltage Of 0.6/1kVm And Below(GB/T12527)
Executive Standard
The product shall be manufactured at the GB/T 12527 standard and shall apply to the overhead power lines with overhead insulated cables at the AC rated voltage of 0.6/1kVm And Below.
Operation Characteristic
The long-term thermal rating of the cable conductor:
1. Polyvinyl chloride, polyethylene insulating shall not exceed 70℃；
2. Crosslinked polyethylene insulating shall not exceed 90℃；
3. The cable ’ s lying temperature insulating shall not less than -20℃；
The allowed bending radius of cable:
1.Cables with diameter(D) of less than 25mm shall not be less than 4D;
2.Cables with diameter(D) of 25mm and above shall not less than 4D.
Model and Name of Product
Model | Name |
JKV-0.6/1 | Rated Voltage 0.6/1kV ,Copper,PVC insulated,Overhead Cable |
JKLV-0.6/1 | Rated Voltage 0.6/1kV ,Aluminum,PVC insulated,Overhead Cable |
JKY-0.6/1 | Rated Voltage 0.6/1kV ,Copper,Polyethylene insulated,Overhead Cable |
JKLY-0.6/1 | Rated Voltage 0.6/1kV ,Aluminum,Polyethylene insulated,Overhead Cable |
JKYJ-0.6/1 | Rated Voltage 0.6/1kV ,Copper,Cross-linked Polyethylene insulated,Overhead Cable |
JKLYJ-0.6/1 | Rated Voltage 0.6/1kV ,Aluminum,Cross-linked Polyethylene insulated,Overhead Cable |
- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: JKV-0.6/1,JKLV-0.6/1,JKY-0.6/1,JKLY-0.6/1,JKYJ-0.6/1,JKLYJ-0.6/1
- Weight: 2300.000 kg
Specifications
Model | Number of Cores | N ominal section ( mm 2 ） |
JKV、 JKLV 、 JKY 、 JKLY | 1 | 6～ 240 |
JKYJ、 JKLYJ | 2、 4 | 6～ 240 |
JKLV、 JKLY 、 JKLYJ | 3 K | 6～ 240 |
Note ： “ K ” is the neutral conductor with load bearing. Choose one section to match with the main core according to the requirements of power distribution project. | ||
Note: Weight of different models is different,more details are available on catalogue.
