- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: WDZA-YJY,WOZB-YJY,WDZC-YJY,WDZA-YJLY,WOZB-YJLY,WDZC-YJLY,WDZA-YJYP,WOZB-YJYP,WDZC-YJYP,WDZA-YJLYP,WOZB-YJLYP,WDZC-YJLYP,WDZA-YJYP2,WDZB-YJYP2,WDZC-YJYP2,WDZA-YJLYP2,WDZB-YJLYP2,WDZC-YJLYP2,WDZA-YJY23,W0ZB-YJY23,WDZC-YJY23,WDZA-YJLY23,W0ZB-YJLY23,WDZC-YJLY23,WDZA-YJY33,WDZB-YJY323,WDZC-YJY33,WDZA-YJL
- Weight: 2300.000 kg

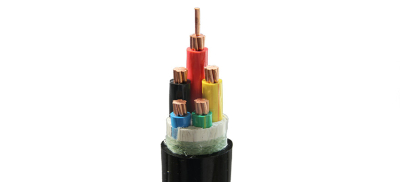

Low Smoke Zero Halogen Antiflaming Power cable
(Q / 0100HLT0 22 )
Applications
Low-Voltage Power 0.6/1kV electric power transportation,especially suitable for high safety requirements buildings such as hospital, theater act.
Operation Characteristics
Operating Temperature
l Cable normal operation temperature: below 90℃
l Minimum installation temperature: O℃
Physical Date
l bend radius :
No -Armored cable bend radius :above the 6 times of the cable diameter
Armored cable bend radius :above the 12 times of the cable diameter
l Installation minimum bend radius : above the 5 times of the cable diameter

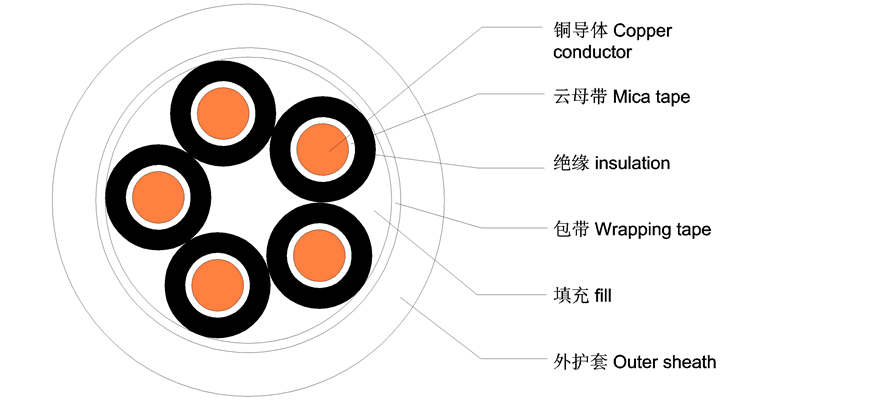

l Construction Date:as Cross-linked Polyethylene insulated Power cable
Model and Name of Product
Model | Name | |
Copper | Aluminum | |
WDZA-YJY WOZB-YJY WDZC-YJY | WDZA-YJLY WOZB-YJLY WDZC-YJLY | Copper(Aluminum),Cross-linked Polyethylene insulated,Polyolefine sheathed,Low Smoke Zero Halogen type A(B、 C) Antiflaming Power cable |
WDZA-YJYP WOZB-YJYP WDZC-YJYP | WDZA-YJLYP WOZB-YJLYP WDZC-YJLYP | Copper(Aluminum),Cross-linked Polyethylene insulated,Polyolefine sheathed,Copper braid shielded,Low Smoke Zero Halogen type A(B、 C) Antiflaming Power cable |
WDZA-YJYP2 WDZB-YJYP2 WDZC-YJYP2 | WDZA-YJLYP2 WDZB-YJLYP2 WDZC-YJLYP2 | Copper(Aluminum),Cross-linked Polyethylene insulated,Polyolefine sheathed,Copper strip shielded,Low Smoke Zero Halogen type A(B、 C) Antiflaming Power cable |
WDZA-YJY23 W0ZB-YJY23 WDZC-YJY23 | WDZA-YJLY23 W0ZB-YJLY23 WDZC-YJLY23 | Copper(Aluminum),Cross-linked Polyethylene insulated,Polyolefine sheathed,Steel strip armored , Low Smoke Zero Halogen type A(B、 C) Antiflaming Power cable |
WDZA-YJY33 WDZB-YJY323 WDZC-YJY33 | WDZA-YJLY33 WDZB-YJLY33 WDZC-YJLY33 | Copper(Aluminum),Cross-linked Polyethylene insulated,Polyolefine sheathed, Steel wire armored , Low Smoke Zero Halogen type A(B、 C) Antiflaming Power cable |
- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: WDZA-YJY,WOZB-YJY,WDZC-YJY,WDZA-YJLY,WOZB-YJLY,WDZC-YJLY,WDZA-YJYP,WOZB-YJYP,WDZC-YJYP,WDZA-YJLYP,WOZB-YJLYP,WDZC-YJLYP,WDZA-YJYP2,WDZB-YJYP2,WDZC-YJYP2,WDZA-YJLYP2,WDZB-YJLYP2,WDZC-YJLYP2,WDZA-YJY23,W0ZB-YJY23,WDZC-YJY23,WDZA-YJLY23,W0ZB-YJLY23,WDZC-YJLY23,WDZA-YJY33,WDZB-YJY323,WDZC-YJY33,WDZA-YJL
- Weight: 2300.000 kg
Specifications
Number of Cores | Nominal section ( mm 2 ) | |
Armored | No-armored | |
1 | 1 ~ 800 | 2.5 ~ 800 |
2、 3 、 4 、 5 | 4 ~ 400 | 2.5 ~ 400 |
3 1、 3 2 、 4 1 | 4 ~ 400 | 2.5 ~ 400 |
Note: Weight of different models is different,more details are available on catalogue.
