Low Smoke Zero Halogen Antiflaming Control Cable
( GB/T 9330.2、 GB/T 19666 )
Applications:
The product is applicable to control, monitoring loop and protection circuit with rated AC voltage of 450/750V and below, especially important situations with strict requirement on safety coefficient, such as nuclear power station, tunnel, metro and theatre, etc.
Operation Characteristics:
1. Rated AC voltage Uo/U:450/750V
2. Allowable long-term operation temperature of cable conductor is 90℃ ;
3. The temperature of cable laying shall not be below 0℃ ;
4. Recommended allowable bending radius:
Cables without armor shall not be less than 6 times external diameter of cable;
Cables with armor or copper strip shielding structure shall not be less than 12 times external diameter of cable;
Flexible cables with shielding structure shall not be less than 6 times external diameter of cable.
Model and Name of Product
Model | Name |
WDZA-KYJY WOZB-KYJY WDZC-KYJY | Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Low Smoke Zero Halogen type A Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Low Smoke Zero Halogen type B Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Low Smoke Zero Halogen type C Antiflaming Control Cable |
WDZA-KYJYP WOZB-KYJYP WDZC-KYJYP | Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Copper braided shielded,Low Smoke Zero Halogen type A Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Copper braided shielded,Low Smoke Zero Halogen type B Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Copper braided shielded,Low Smoke Zero Halogen type C Antiflaming Control Cable |
WDZA-KYJYP2 WDZB-KYJYP2 WDZC-KYJYP2 | Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Copper tape shielded,Low Smoke Zero Halogen type A Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Copper tape shielded,Low Smoke Zero Halogen type B Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Copper tape shielded,Low Smoke Zero Halogen type C Antiflaming Control Cable |
WDZA-KYJYP3 W0ZB-KYJYP3 WDZC-KYJYP3 | Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Poyethylene-aluminum composite strip shielded,Low Smoke Zero Halogen type A Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Poyethylene-aluminum com posite strip shielded,Low Smoke Zero Halogen type B Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Poyethylene-aluminum composite strip shielded,Low Smoke Zero Halogen type C Antiflaming Control Cable |
WDZA-KYJYP2-23 WDZB-KYJYP2-23 WDZC-KYJYP2-23 | Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Steel tape armored,Low Smoke Zero Halogen type A Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Steel tape armored,Low Smoke Zero Halogen type B Antiflaming Control Cable Copper,Cross-linked Polyethylene insulated,polyolefin sheathed,Steel tape armored,Low Smoke Zero Halogen type C Antiflaming Control Cable |
- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: WDZA-KYJY,WOZB-KYJY,WDZC-KYJY,WDZA-KYJYP,WOZB-KYJYP,WDZC-KYJYP,WDZA-KYJYP2,WDZB-KYJYP2,WDZC-KYJYP2,WDZA-KYJYP3,W0ZB-KYJYP3,WDZC-KYJYP3,WDZA-KYJYP2-23,WDZB-KYJYP2-23,WDZC-KYJYP2-23
- Weight: 2300.000 kg
Specifications
Model | Rated Voltage (V ) | N ominal S ection mm 2 | ||||||
0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
Number of Cores | ||||||||
WDZA-KYJY WOZB-KYJY WDZC-KYJY | 450/750 | 2~ 61 | 2~ 37 | 2~ 14 | ||||
WDZA-KYJYP2 WDZB-KYJYP2 WDZC-KYJYP2 | 4~ 24 | 4~ 10 | ||||||
WDZA-KYJYP23 WDZB-KYJYP23 WDZC-KYJYP23 WDZA-KYJYP2-23 WDZB-KYJYP2-23 WDZC-KYJYP2-23 WDZA-KYJYP3-23 WDZB-KYJYP3-23 WDZC-KYJYP3-23 | 2~ 61 | 4~ 24 | 4~ 10 |
Characteristics of Product
The product overcomes the shortcomings of traditional antiflaming control cable, greatly facilitates fire fighting and personnel evacuation, prevents corrosion of hydracid gas on instruments and equipment, and becomes a product to update traditional antiflaming control cable. The product mainly has the following three characteristics:
1. Low release amount of hydrogen halide in time of cable burning;
2. Low smoke formation and high light transmittance in time of cable burning’
3. Long-term operation temperature of insulated core of the cable can reach 90℃ , expanding the service life of cable.

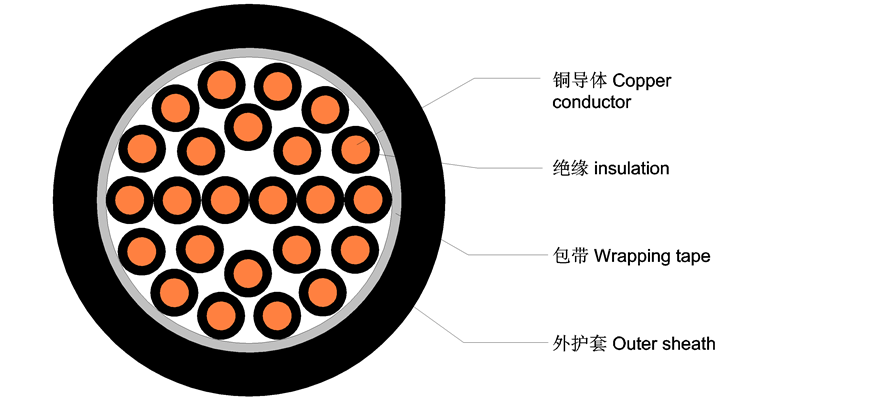

Structural Parameters
For structural parameters, please refer to ordinary polyethylene insulated control cable.
