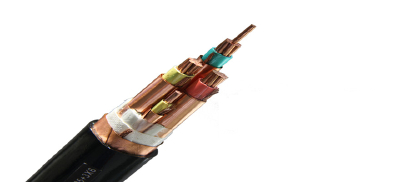

Frequency Converter C able （Q/0100HLT009 ）
Application
The product is applicable to connection of frequency conversion control system and power supply cable or electrics with rated AC voltage of 0.6/1kV and below. With strong capacity of withstand voltage, the product can stand impulse voltage in time of high speed frequency conversion;with good shielding performance, the product can reduce the adverse impact of higher harmonic in output of frequency converter,effectively eliminate electromagnetic interference, reduce noise of frequency conversion machine, ensure stable operation of the system. The product is widely used in the industries of metallurgy, electric power an petrochemical engineering,etc.
Model and Name of Product
Model | Name |
BPGGP | Silicon rubber insulated and sheathed,Copper wire braided shielded,High temperature resisting Frequency Converter Cable |
BPGGP2 | Silicon rubber insulated and sheathed,Copper strip wrapped shielded,High temperature resisting Frequency Converter Cable |
BPGGPP2 | Silicon rubber insulated and sheathed,Copper wire braided Copper strip wrapped shielded,High temperature resisting Frequency Converter Cable |
BPGGP3 | Silicon rubber insulated and sheathed,Aluminum polyester composite film wrapped shielded,High temperature resisting Frequency Converter Cable |
BPGVFP | Silicon rubber insulated,Butyronitrile Rubber sheathed,Copper wire braided shielded,High temperature resisting Frequency Converter Cable |
BPGVFP2 | Silicon rubber insulated,Butyronitrile Rubber sheathed,Copper strip wrapped shielded,High temperature resisting Frequency Converter Cable |
BPGVFPP2 | Silicon rubber insulated,Butyronitrile Rubber sheathed,Copper wire braided Copper strip wrapped shielded,High temperature resisting Frequency Converter Cable |
BPGVFP3 | Silicon rubber insulated,Butyronitrile Rubber sheathed,Aluminum polyester composite film wrapped shielded,High temperature resisting Frequency Converter Cable |
BPFFP | F-46 insulated and sheathed,Copper wire braided shielded,High temperature resisting Frequency Converter Cable |
BPFFP2 | F-46 insulated and sheathed,Copper strip wrapped shielded,High temperature resisting Frequency Converter Cable |
BPFFPP2 | F-46 insulated and sheathed,Copper wire braided Copper strip wrapped shielded,High temperature resisting Frequency Converter Cable |
BPFFP3 | F-46 insulated and sheathed,Aluminum polyester composite film wrapped shielded,High temperature resisting Frequency Converter Cable |
BPVVP | PVC insulated and sheathed,Copper wire braided shielded,Frequency Converter Cable |
BPVVP2 | PVC insulated and sheathed,Copper strip wrapped shielded,Frequency Converter Cable |
BPVVPP2 | PVC insulated and sheathed,Copper wire braided Copper strip wrapped shielded,Frequency Converter Cable |
BPVVP3 | PVC insulated and sheathed,Aluminum polyester composite film wrapped shielded,Frequency Converter Cable |
BPYJVP | Cross-linked Polyethylene insulated,PVC sheathed,Copper wire braided shielded,Frequency Converter Cable |
BPYJVP2 | Cross-linked Polyethylene insulated,PVC sheathed,Copper strip wrapped shielded,Frequency Converter Cable |
BPYJVPP2 | Cross-linked Polyethylene insulated,PVC sheathed,,Copper wire braided， Copper strip wrapped shielded,Frequency Converter Cable |
BPYJVP3 | Cross-linked Polyethylene insulated,PVC sheathed,Aluminum polyester composite film wrapped shielded,Frequency Converter Cable |
Note ： copper wire in conductor core can be tinplated;add ZR before model for antiflaming type cables,R for flexible cables, and WD for low smoke zero halogen polyolefin. | |
- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: BPGGP,BPGGP2,BPGGPP2,BPGGP3,BPGVFP,BPGVFP2,BPGVFPP2,BPGVFP3,BPFFP,BPFFP2,BPFFPP2,BPFFP3,BPVVP,BPVVP2,BPVVPP2,BPVVP3,BPYJVP,BPYJVP2,BPYJVPP2,BPYJVP3
- Weight: 2300.000 kg
Specification of cable
1.The section of main core of cable is shown in Table 2
Table 2
Model | Number of Cores | Nominal Sections mm 2 |
All Model | 3 3 3 1 1 | 4， 6 ， 10 ， 16 ， 25 ， 35 ， 50 ， 70 ， 95 ， 120 ， 150,185,240 |
2. The section of grounding core conductor of cable is shown in Table 3
Table 3
Nominal S ection of Main Core Conductor Nominal S ection mm 2 | S ection OF Grounding core C onductor mm 2 |
4 | 1(0.75) |
6 | 1.5(1) |
10 | 2.5(1.5) |
16， 25 | 4(2.5) |
35 | 6 |
50， 70 | 10 |
95 | 16 |
120， 150 | 25 |
185 | 35 |
240 | 50(35) |
3. Basic specification and structural parameters of cable are shown in Table 4
Table 4
| Conductor Structure (number/diameter) mm | Maximum External Diameter of Cable mm | |
BPWPP2 , BPYJVPP2 | BPGGPP2 | ||
3× 4 | 1/2.26 | 13.5 | 15.5 |
3× 6 | 1/2.78 | 14.0 | 16.0 |
3× 10 | 7/1.35 | 19.0 | 21.0 |
3× 16 | 7/1.70 | 22.0 | 24.0 |
3× 25 | 7/2.15 | 25.0 | 26.5 |
3× 35 | 7/2.52 | 26.0 | 35.5 |
3× 50 | 10/2.52 | 28.5 | 40.0 |
3× 70 | 14/2.52 | 31.5 | 43.5 |
3× 95 | 19/2.52 | 36.5 | 50.0 |
3× 120 | 24/2.52 | 40.0 | 56.0 |
3× 150 | 30/2.52 | 45.0 | 60.0 |
3× 185 | 37/2.52 | 47.0 | 67.0 |
3× 4 3 × 0.75 | 1/2.26 | 14.5 | 16.5 |
3 × 6 3 × 1 | 1/2.78 | 15.0 | 17.0 |
3× 10 3 × 2 5 | 7/1.35 | 20.8 | 22.0 |
3 ×16 3 × 2.5 | 7/1.70 | 23.0 | 25.0 |
3× 25 3 × 4 | 7/2.15 | 28.0 | 27.5 |
3 × 35 3 × 6 | 7/2.52 | 32.0 | 36.5 |
3× 50 3 × 10 | 10/2.52 | 37.0 | 41.0 |
3× 70 3 × 10 | 14/2.52 | 41.6 | 44.5 |
3× 95 3 × 16 | 19/2.52 | 47.0 | 51.0 |
3× 120 3 × 25 | 24/2.52 | 50.1 | 57.0 |
3× 150 3 × 25 | 30/2.52 | 52.0 | 61.0 |
3× 185 3 × 35 | 37/2.52 | 58.5 | 68.0 |
Note: Weight of different models is different,more details are available on catalogue.
