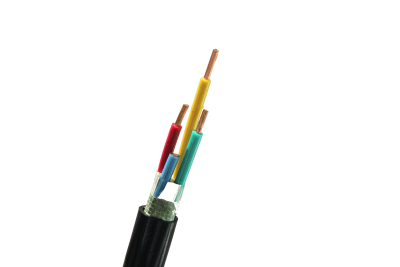

Antiflaming Power cable (GB/T12706.1,GB/T019666,Q/0100HLT008)
Scope
1.The standard specifies the structure, dimension,technical requirement,testing rules,packaging and storage of antiflaming power cable.
2.The Antiflaming power cable specified in the standard is used for situations that power cable shall keep operation for certain period of time in case of inflaming
Model and Name of Product
Model | Name |
ZR-VV(VLV) | Antiflaming Copper(Aluminum),PVC insulated and sheathed , Power cable |
ZR-YJV(YJLV) | Antiflaming Copper(Aluminum),Cross-linked Polyethylene insulated,PVC sheathed,Power cable |
ZR-YGG | Antiflaming Copper Silicon rubber insulated and sheathed Power cable |
ZR-YY(YLY) | Antiflaming Copper(Aluminum),Low smoke zero halogen polyolefin insulated and sheathed,Power cable |
ZR-FF | Antiflaming Copper , Fluoroplastic insulated and sheathed , Power cable |
ZR-VV22(VLV22) | Antiflaming Copper(Aluminum),PVC insulated and sheathed , Steel strip armored，Power cable |
ZR-YJV22 (YJLV22 ) | Antiflaming Copper(Aluminum),Cross-linked Polyethylene insulated,PVC sheathed,Steel strip armored，Power cable |
ZR-YGG22 | Antiflaming Copper(Aluminum),Silicon rubber insulated and sheathed , Steel strip armored，Power cable |
ZR-YY22 ( YLY22 ) | Antiflaming Copper(Aluminum),Low smoke zero halogen polyolefin insulated and sheathed,Steel strip armored，Power cable |
ZR-FF22 | Antiflaming Copper(Aluminum),Fluoroplastic insulated and sheathed , Steel strip armored，Power cable |
Note: 1： Antiflaming can be divided into three categories: ZR (A) grade A Antiflaming, ZR (B) grade B Antiflaming, ZR (C ) grade C Antiflaming Note: 2：ZR-VV series include ZR (A)-RVVZ special electrical cable for Machine Room. | |
- Size: 600mm*600mm*600mm~~2000mm*2000mm*1300mm
- Place of Origin: Jinan,Shandong,China
- Brand Name: HL
- Model Number: Model,ZR-VV(VLV),ZR-YJV(YJLV),ZR-YGG,ZR-YY(YLY),ZR-FF,ZR-VV22(VLV22),ZR-YJV22(YJLV22),ZR-YGG22,ZR-YY22(YLY22 ),ZR-FF22
- Weight: 2300.000 kg
Specification shall meet the requirements of GB/T12706;the specification of ZR (A)-RVVZ shall meet provisions in Table 2
Table 2
Nominal Sections mm 2 | Number of Cores |
1.5 ～300 | 1 ～5 |
Technical Requirements
1.operation enviroment conditions
Maximum working temperature of PVC insulated cable conductor shall not exceed 70℃;
Maximum working temperature of Cross-linked Polyethylene insulated cable conductor shall not exceed 90℃;
Maximum working temperature of Silicon rubber insulated cable conductor shall not exceed 180℃;
Maximum working temperature of Fluoroplastic insulated cable conductor shall not exceed 200℃;
2.Bending radius cable shall meet requirement of GB/T12706.1
Note: Weight of different models is different,more details are available on catalogue.
